E1 SeriesSelf-aligning Roller Bearings

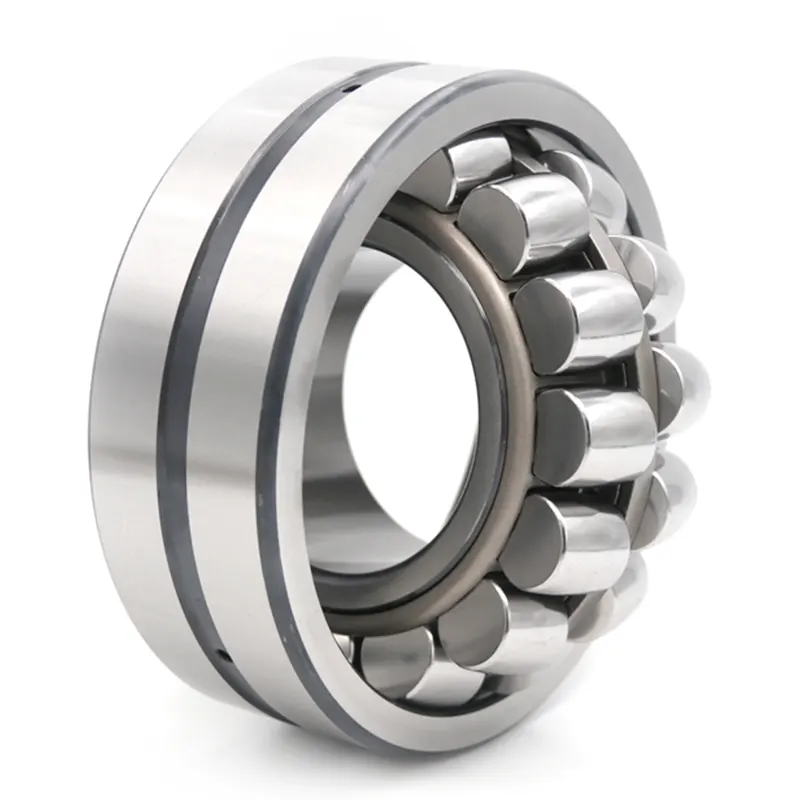

The E1 self-aligning roller bearing is a type of self-aligning roller bearing. It features symmetrical spherical rollers, a two-piece stamped cage made of hardened steel, an inner ring without a flange, and a central ring guided by the cage.


Features:

The intermediate ring, positioned close to the outer ring, improves lubrication at the contact points between the roller end faces and the ring. Its function is to reduce bearing friction, assist in guiding the rollers in the non-load zone, and help the rollers enter the load zone. At the same time, the increased roller length results in a significant improvement in the rated load capacity. Typically, the rated load capacity can be increased by 20% to 35%.



Advantages:

Capable of withstanding forces from multiple directions, suitable for high speeds, and capable of withstanding high loads.




E1 SeriesSelf-aligning Roller Bearings
E1 SeriesSelf-aligning Roller Bearings

Product Parameters

Inquiry Model Basic Dimensions(mm) Ratings(kN) Limiting Speed(r/min) Weight
≈kg
Cylindrical Bore Tapered Bore d D B C Dynamic C0 Static Ref. Lim.
✉️ 22236 E1 22236 E1K 180 320 - 86 1660 1700 2400 29.2
✉️ 22232 E1 22232 E1K 160 290 - 80 1400 1900 2600 23.3
✉️ 22234 E1 22234 E1K 170 310 - 86 1560 1800 2400 27.8
✉️ 22330 E1 22330 E1K 150 320 - 108 1860 1500 2000 42.2
✉️ 22228 E1 22228 E1K 140 250 - 68 1040 2400 2400 14.2
✉️ 22328 E1 22328 E1K 140 300 - 102 1630 1700 2200 35.1
✉️ 22230 E1 22230 E1K 150 270 - 73 1220 2000 2600 18.2
✉️ 22326 E1 22326 E1K 130 280 - 93 1370 1800 2400 28
✉️ 22324 E1 22324 E1K 120 260 - 86 1160 2000 2600 22.5
✉️ 22226 E1 22226 E1K 130 230 - 64 900 2600 3000 11.3
✉️ 22224 E1 22224 E1K 120 215 - 58 735 2800 3400 8.84
✉️ 22322 E1 22322 E1K 110 240 - 80 1060 2200 2600 17.7
✉️ 22220 E1 22220 E1K 100 180 - 46 475 3400 4300 4.96
✉️ 22320 E1 22320 E1K 100 215 - 73 915 2400 3000 12.8
✉️ 22222 E1 22222 E1K 110 200 - 53 600 3000 4000 6.99
✉️ 22219 E1 22219 E1K 95 170 - 43 415 3600 4500 4.13
✉️ 22319 E1 22319 E1K 95 200 - 67 695 2800 3000 9.69
✉️ 22218 E1 22218 E1K 90 160 - 40 375 3800 4800 3.43
✉️ 21318 E1 21318 E1K 90 190 - 43 415 3600 4500 6.26
✉️ 22318 E1 22318 E1K 90 190 - 64 630 3000 3600 8.51
