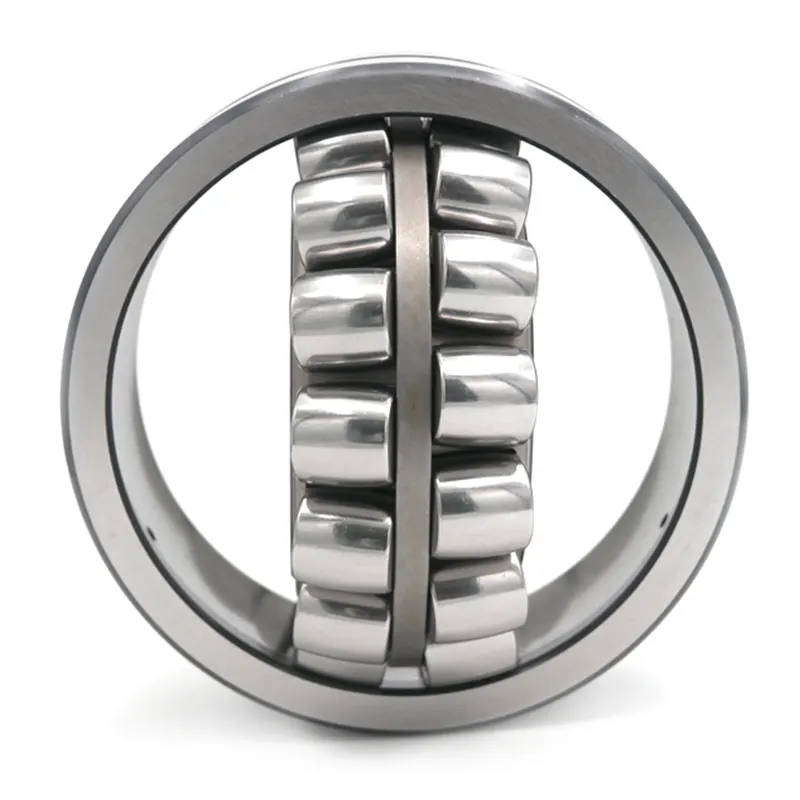

E SeriesSelf-aligning Roller Bearings

Type E self-aligning roller bearings are a sub-category of self-aligning roller bearings. They feature symmetrical spherical rollers, a two-piece stamped cage made of hardened steel, an inner ring without a flange, and a centre ring guided by the cage.


Features:

The intermediate ring, positioned close to the outer ring, improves lubrication at the contact points between the roller end faces and the ring. Its function is to reduce bearing friction, assist in guiding the rollers in the non-load zone, and help the rollers enter the load zone. At the same time, the increased roller length results in a significant improvement in the rated load capacity. Typically, the rated load capacity can be increased by 20% to 35%.



Advantages:

Capable of withstanding forces from multiple directions, suitable for high speeds, and capable of withstanding high loads.



E SeriesSelf-aligning Roller Bearings
E SeriesSelf-aligning Roller Bearings

Product Parameters

Inquiry Model Basic Dimensions(mm) Ratings(kN) Limiting Speed(r/min) Weight
≈kg
Cylindrical Bore Tapered Bore d D B C Dynamic C0 Static Ref. Lim.
✉️ 22224 E 22224 EK 120 215 58 652 765 2 800 3 800 8.7
✉️ 22226 E 22226 EK 130 230 64 758 930 2 600 3 600 11
✉️ 22222 E 22222 EK 110 200 53 572 640 3 000 4 000 7
✉️ 22322 E 22322 EK 240 80 989 1 120 2 000 2 800 18.5
✉️ 22320 E 22320 EK 100 215 73 847 950 2 400 3 000 13.5
✉️ 22220 E 22220 EK 100 180 46 433 490 3 400 4 500 4.9
✉️ 21320 E 21320 EK 100 215 47 433 490 3 400 4 500 8.6
✉️ 22319 E 22319 EK 95 200 67 699 765 2 600 3 400 10.5
✉️ 22318 E 22318 EK 90 190 64 637 695 2 600 3 600 9.05
✉️ 22219 E 22219 EK 95 170 43 393 450 3 600 4 800 4.15
✉️ 21319 E 21319 EK 95 200 45 433 490 3 400 4 500 7.05
✉️ 22218 E 22218 EK 90 160 40 331 375 3 800 5 300 3.4
✉️ 21318 E 21318 EK 90 190 43 393 450 3 600 4 800 6.1
✉️ 21317 E 21317 EK 85 180 41 331 375 3 800 5 300 5.2
✉️ 22317 E 22317 EK 85 180 60 577 620 2 800 3 800 7.65
✉️ 22217 E 22217 EK 85 150 36 291 325 4 000 5 600 2.7
✉️ 22316 E 22316 EK 80 170 58 516 530 3 000 4 000 6.6
✉️ 22216 E 22216 EK 80 140 33 243 270 4 300 6 000 2.1
✉️ 21316 E 21316 EK 80 170 39 331 375 3 800 5 300 4.45
✉️ 22215 E 22215 EK 75 130 31 217 240 4 800 6 300 1.7
